SmFeN Flexible Rubber Magnetic Strips
These High-Performance SmFeN (Samarium Iron Nitrogen) Flexible Magnetic Strips maintain exceptional flexibility for winding and bending while providing magnetic energy significantly higher than standard rubber ferrite.
Material Architecture & Scientific Background
SmFeN (Samarium Iron Nitrogen) is widely recognized in magnetics as the "4th Generation Rare-Earth Permanent Magnet." Our flexible strips are engineered by compounding sub-micron SmFeN magnetic powders with high-performance synthetic elastomers (CPE/EPDM) using advanced high-loading technology.
By utilizing the interstitial nitrogen atoms within the crystal lattice, this material achieves a unique balance of high magnetic flux density and exceptional mechanical flexibility, surpassing the limitations of traditional ferrite and bonded NdFeB magnets.
Core Technical Advantages
-
High Magnetic Anisotropy: With a theoretical anisotropy field (Ha ≈ 21T), SmFeN strips maintain high remanence even at ultra-thin gauges (down to 0.5mm), ensuring stable magnetic pole distribution in precision applications.
-
Superior Thermal Stability:
-
Curie Temperature (Tc): Approx. 470℃ (significantly higher than 310℃ for NdFeB).
-
Operating Range: Maintains magnetic integrity from -40℃ to +120℃ with minimal reversible loss.
-
-
Exceptional Oxidation & Corrosion Resistance: Unlike NdFeB, SmFeN is inherently stable against oxidation due to its chemical structure. Our rubber-bonded strips pass rigorous salt-spray and humidity tests without the need for additional surface plating or coating.
-

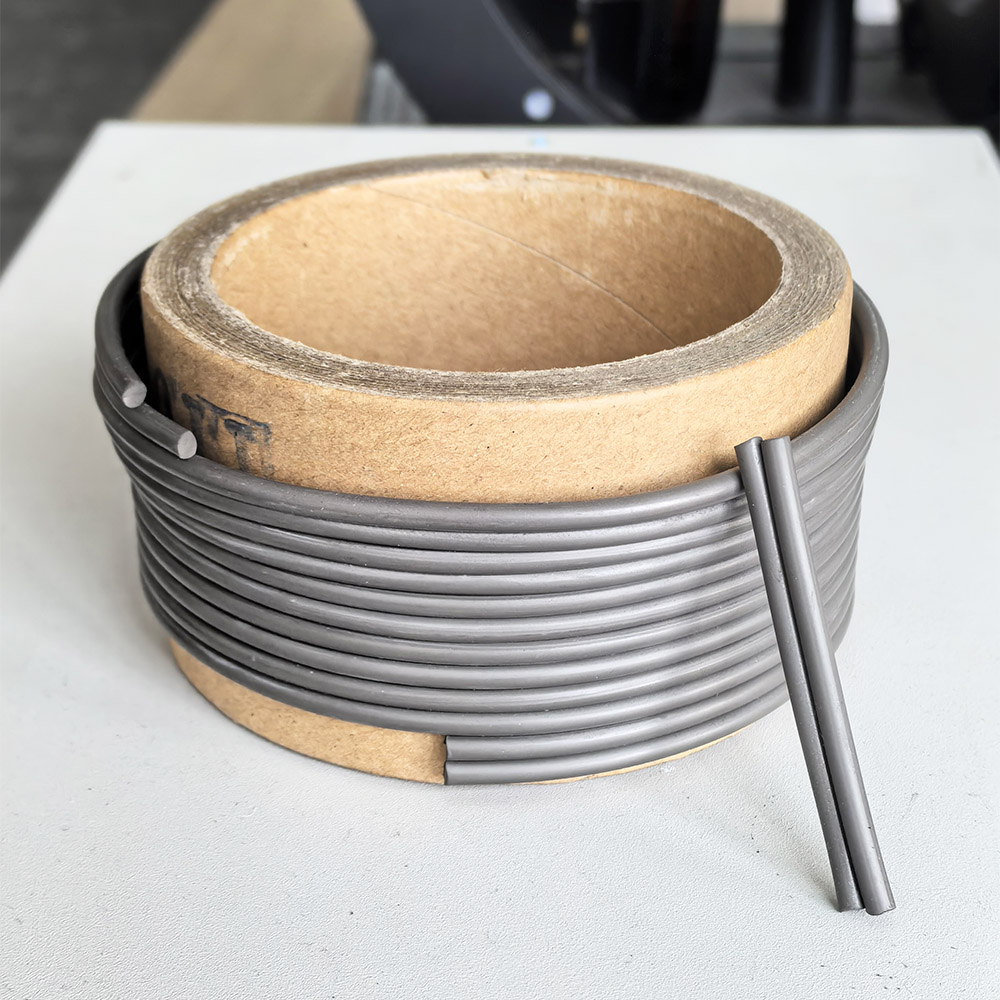

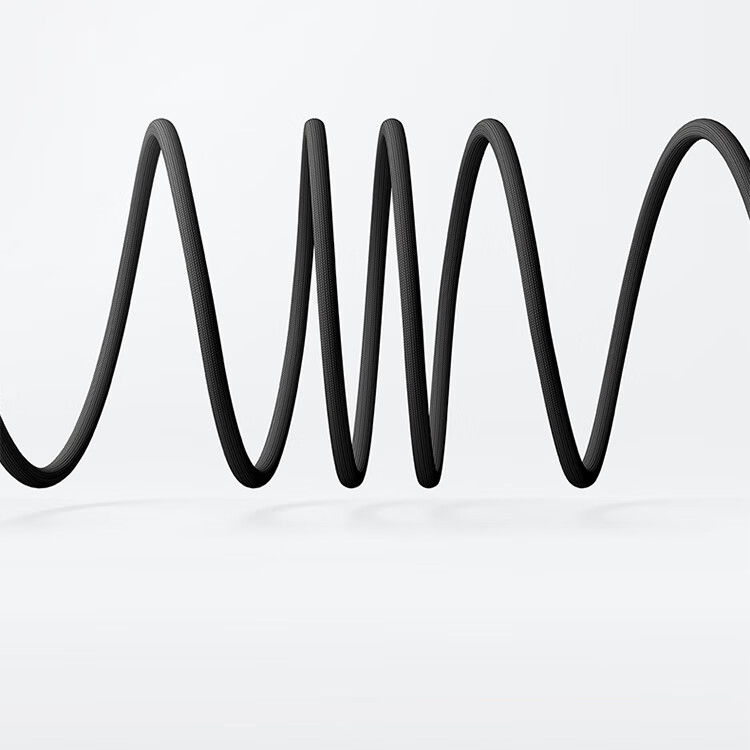

Advanced Mechanical Integrity: Optimized polymer matrix allows for a magnetic powder volume filling rate of over 70% while maintaining a high elastic modulus. This prevents micro-cracking even under extreme winding cycles (as demonstrated in the product imagery).
Technical Benchmark (Comparative Analysis)
|
Property |
SmFeN Flexible Strip |
Rubber Ferrite |
Bonded NdFeB |
|
Energy Product BHmax |
2.0 – 8.0 MGOe |
0.6 – 1.2 MGOe |
4.0 – 10.0 MGOe |
|
Remanence Br (mT) |
300 – 580 |
160 – 240 |
400 – 700 |
|
Intrinsic Coercivity Hcj (kA/m) |
600 – 1000 |
180 – 250 |
650 – 900 |
|
Max Operating Temp (℃) |
120 – 150 |
80 – 100 |
80 – 120 |
|
Oxidation Resistance |
Excellent (Uncoated) |
Excellent |
Poor (Requires Coating) |
|
Flexibility / Toughness |
Superior |
Excellent |
Brittle |
High-End Industrial Applications
-
Precision Motion Control: High-resolution magnetic scales and rotary encoders for CNC machinery and robotics.
-
Automotive Sensing Systems: ABS wheel speed sensors, camshaft position sensors, and EPS (Electric Power Steering) modules.
-
Micro-Motor Technology: High-efficiency rotors for BLDC motors, stepping motors, and inverter-controlled appliance compressors.
-
Aerospace & Defense: Lightweight, flexible magnetic seals and actuators capable of withstanding rapid temperature cycling.
-
Electromagnetic Compatibility (EMC): High-permeability base material for microwave absorption and EMI suppression in 5G infrastructure.
Customization & Engineering Support
We provide full-spectrum technical support for customized magnetic circuit designs:
-
Magnetization Patterns: Single-sided multipole, radial, axial, or custom skewed magnetization.
-
Substrate Selection: Choice of NBR (oil resistant), EPDM (weather resistant), or Silicone (high temperature) carriers.
-
Precision Secondary Processing: Die-cutting, kiss-cutting, and application of high-shear 3M adhesive backings.
