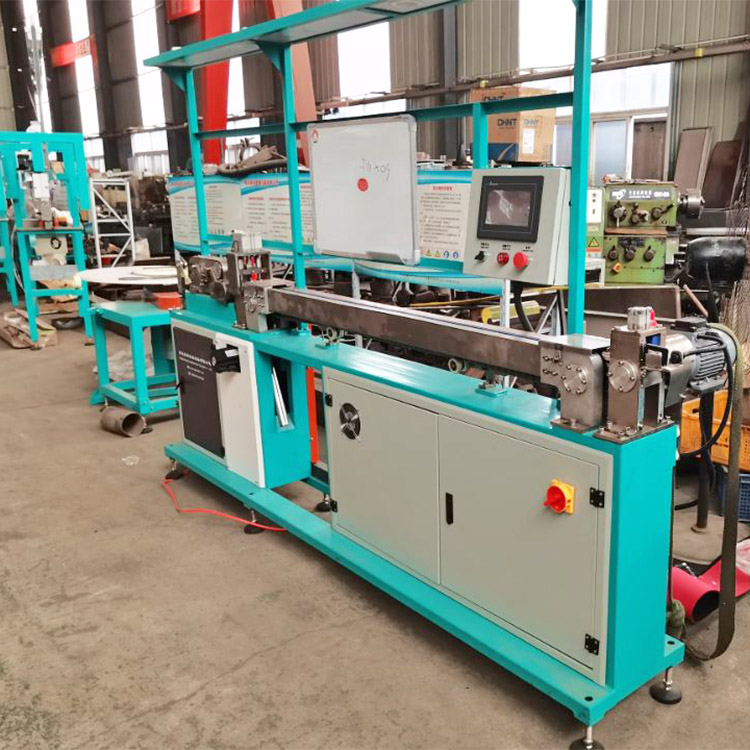

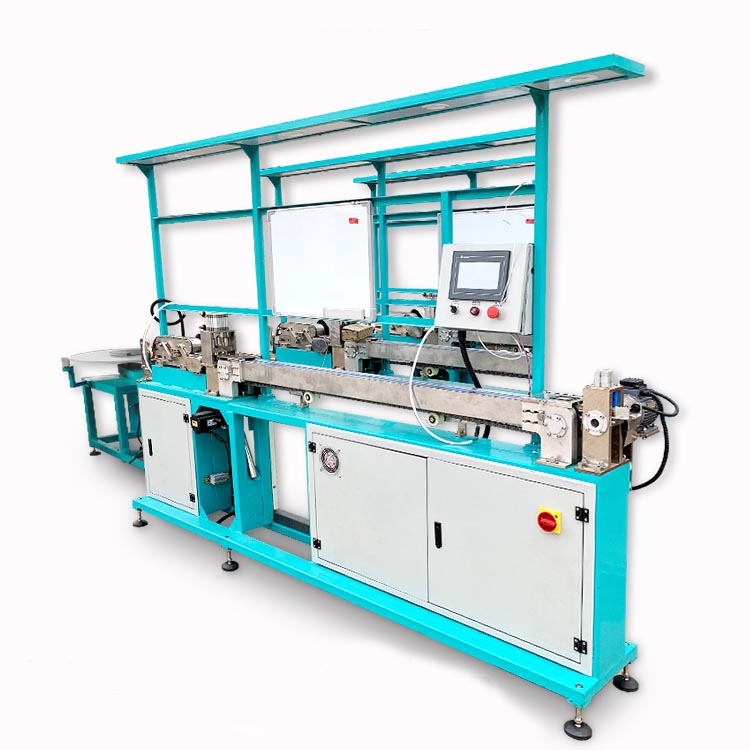

Magnet strip inserting machine

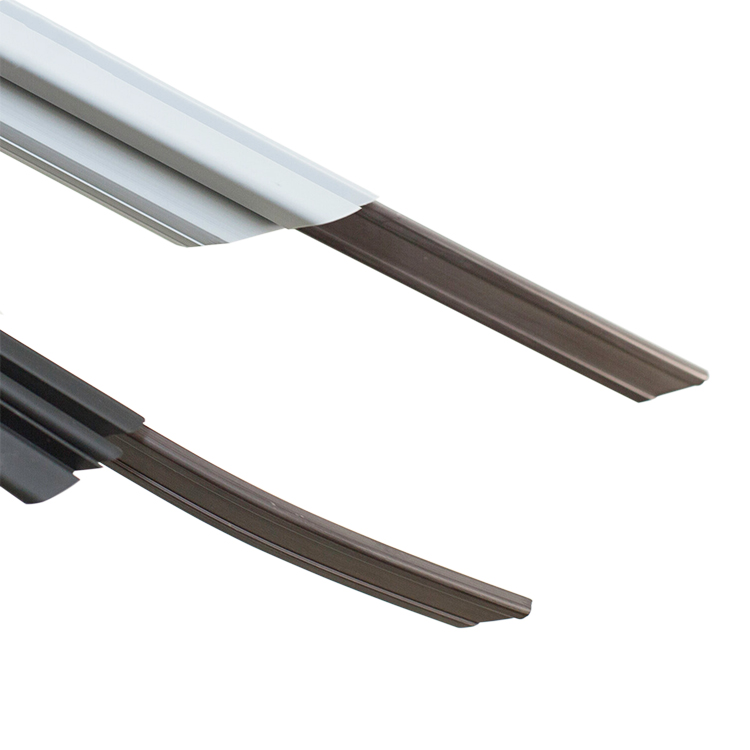

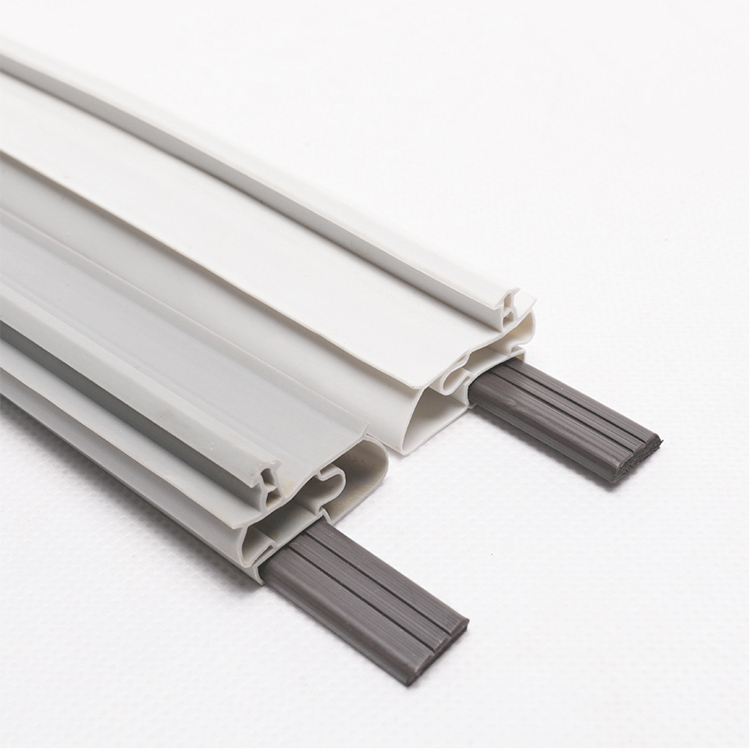

The magnet strip inserting machine adopts a Mitsubishi servo control system. Touch screen size parameter inputting. Then insert the strip into the soft PVC gasket. The power of this machine is supplied by a servo motor and a cylinder. The magnetic strip transported from the strip unwrapping machine is inserted into 45 degree gasket conveniently. The inserting machine produces fridge door seal and gasket fast.
Magnet strip inserting machine
Main components

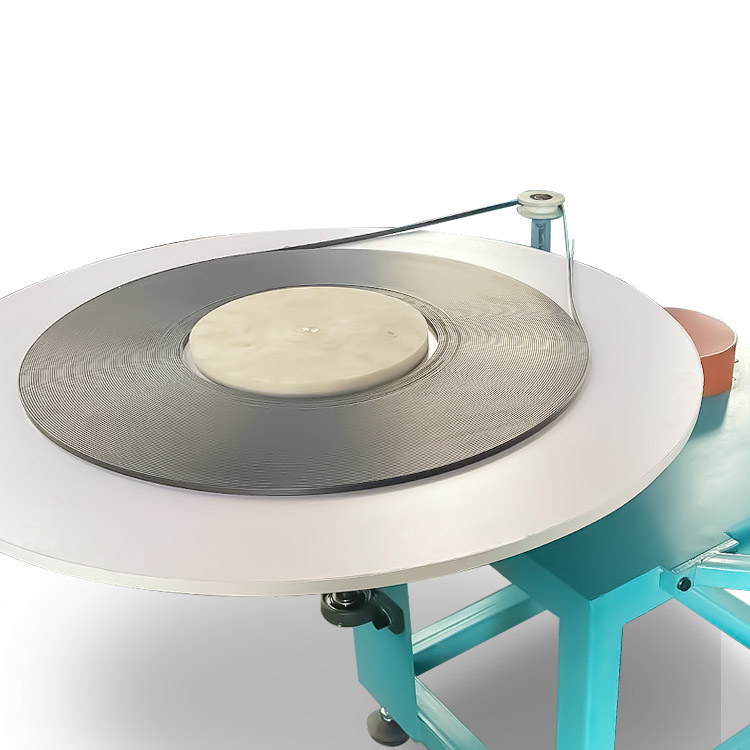

- Magnetic strip spreading device
- Magnetic strip tensioner device
- Magnetic detection device
- Magnetic strip hall off device
- Magnetic strip cutting device
- Magnetic strip inserting device
Main Technical Parameters
- Electrical supply: 380V/50Hz/16A (Designed by the requirements of the client)
- Max Power: 1.6KW
- Accuracy: <±0.1mm
- Production rate: 1-20m/min
Technical Parameters of the Magnet Strip Inserting Machine
|
No. |
Technical data. |
Value |
|
1 |
Power supply |
380V 50Hz |
|
2 |
Current |
16A |
|
3 |
Max. power |
3.5 KW |
|
4 |
Opening roll device dimension |
1200*1200*1200 mm |
|
5 |
Opening roll device weight |
120 Kg |
|
6 |
Dimension |
4200*650*1450 mm |
|
7 |
Total weight |
540 Kg |
|
8 |
Workable dimension |
1300*1200*1100 mm |
|
9 |
Workable weight |
45 Kg |
|
10 |
Control panel |
500*600*1100 mm |
|
11 |
Output |
10000m/12 Hours approx. |
Magnet strip inserting machine
