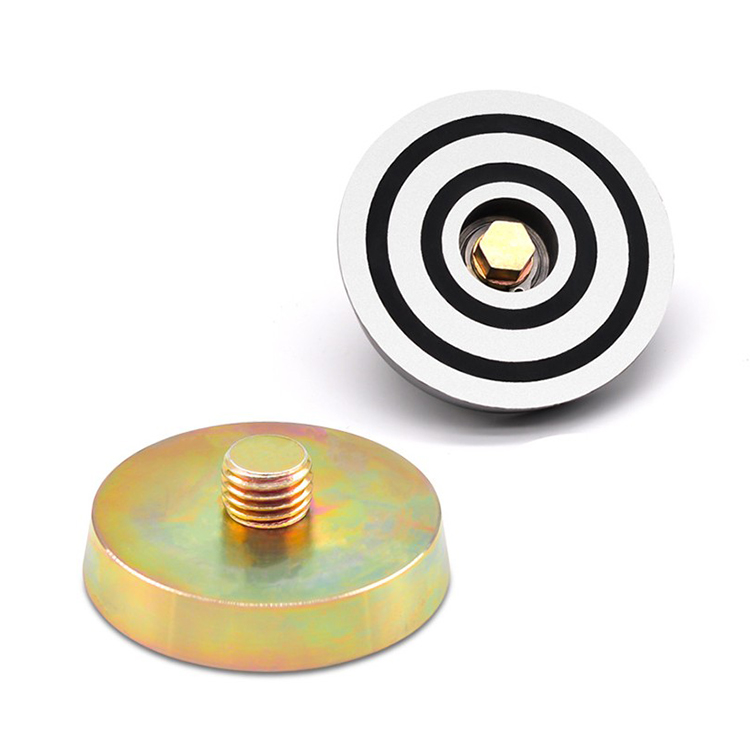

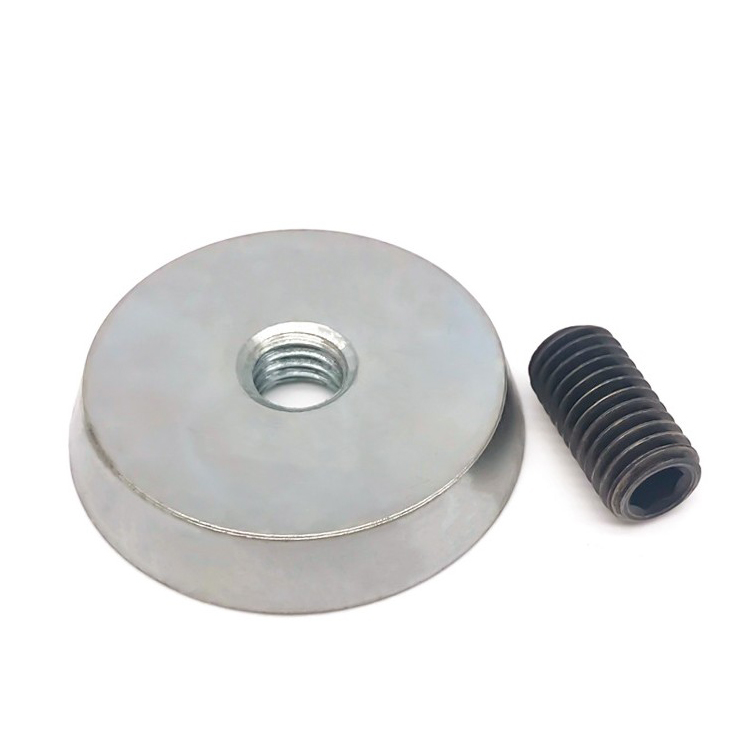

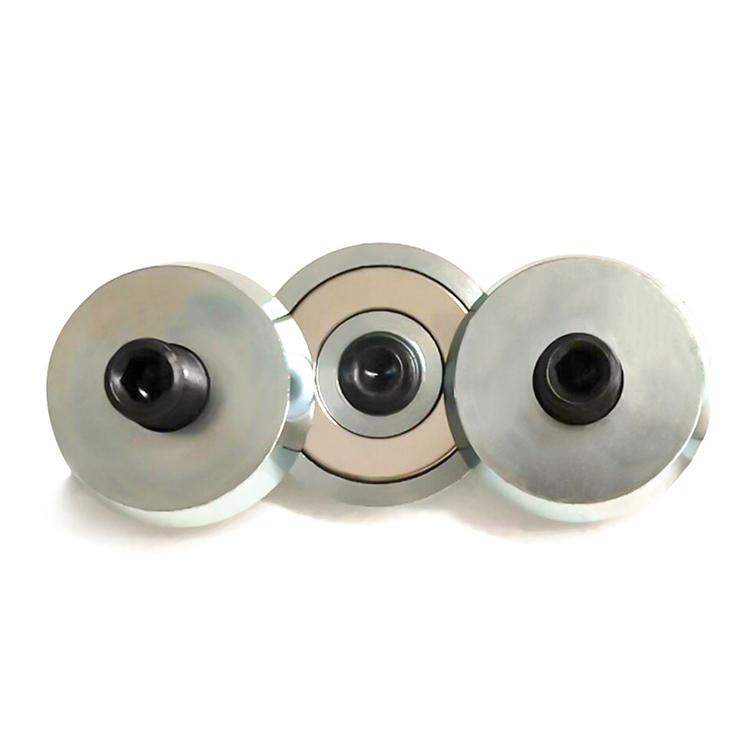

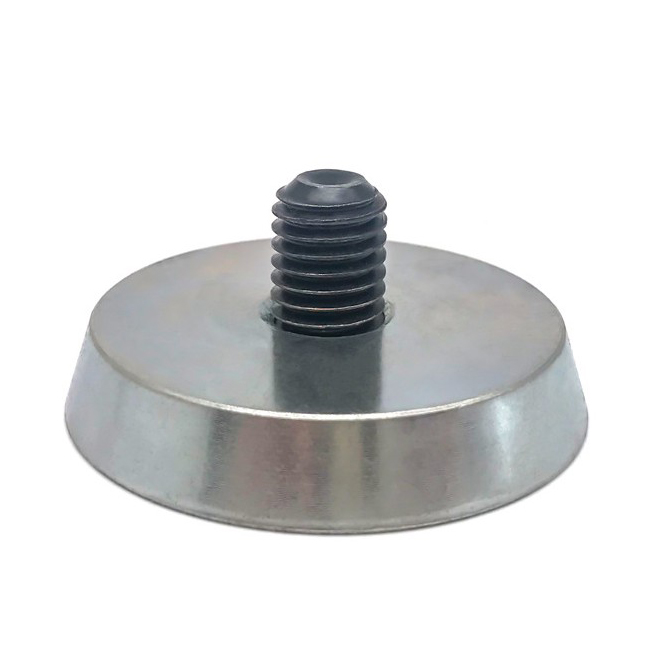

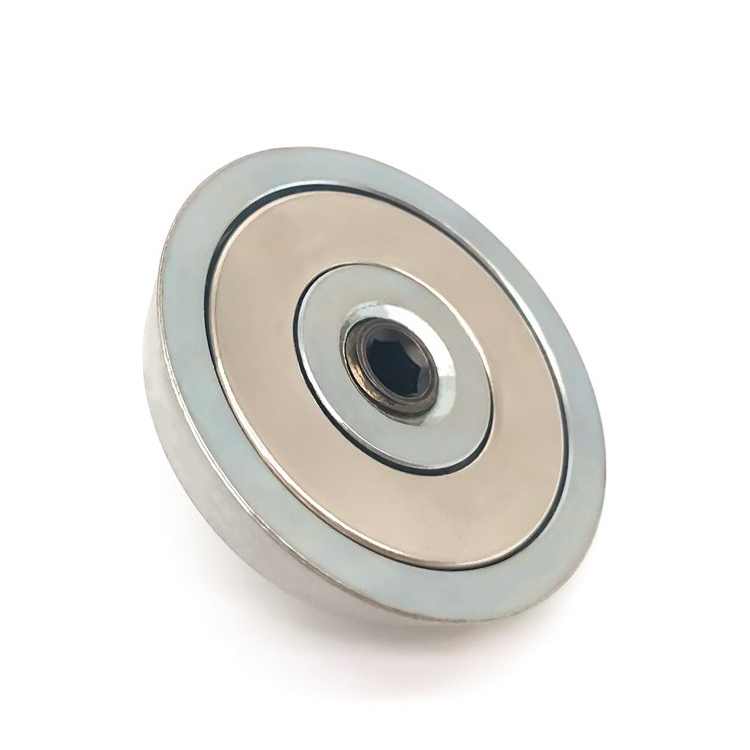

Mounting Magnets are magnetic fixtures specially developed for fixing all kinds of pre-embedded parts, they are consisting of two parts: magnetic base with screw holes and threaded rods; the magnetic base is composed of a neodymium magnet and a steel shell.
Mounting Magnet
Features:
- Versatility: Customizable magnet types (e.g., for pipes, formwork) fit diverse construction needs.
- Eco-Friendly: High-recycling rare earth magnets align with green building and sustainability goals.
- Precision & Stability: Magnets' strong adsorption ensures formwork contact, enhancing concrete pouring precision and stability.
- Cost-Effectiveness & Durability: Easier to use than bolts or glue, magnets offer better value and longevity.
Parameters:
|
Model |
Diameter |
D1(mm) |
D2 (mm) |
Height(mm) |
|
DX-M8 |
8 |
45 |
40 |
8 |
|
DX-M10 |
10 |
45 |
40 |
8 |
|
DX-M12 |
12 |
54 |
48 |
10 |
|
DX-M16 |
16 |
54 |
48 |
10 |
|
DX-M20 |
20 |
60 |
53.8 |
10 |
|
DX-M24 |
24 |
77.2 |
73 |
12 |
|
Model |
D1 |
D2 |
d1 |
d2 |
H |
Weight |
Force |
|
DX-D55 |
55 |
44.6 |
15 |
9 |
10 |
127.9g |
700N |
|
DX-D70 |
70 |
59.6 |
15 |
9 |
10 |
230g |
1200N |
|
Model |
D mm |
D1 mm |
|
DX-M12 |
64.5 |
60 |
|
DX-M16 |
64.5 |
60 |
|
DX-M20 |
64.5 |
60 |
|
DX-M24 |
78 |
74 |
