This series of Stainless Steel Architectural Magnetic boxes is specially developed for fixing wooden or iron edge molds. By designing the rare earth permanent magnet structure reasonably, it releases adsorption force far exceeding that of the magnet itself.

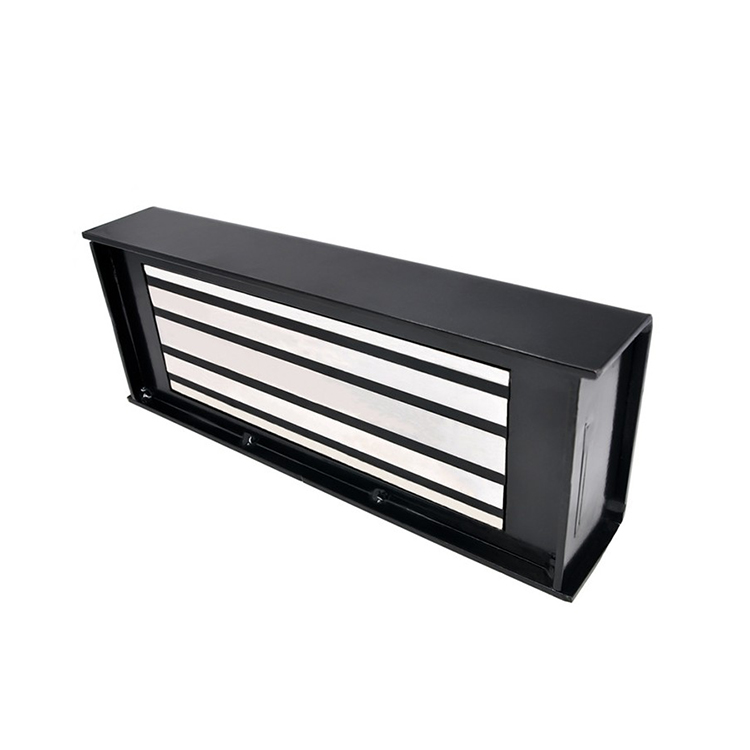

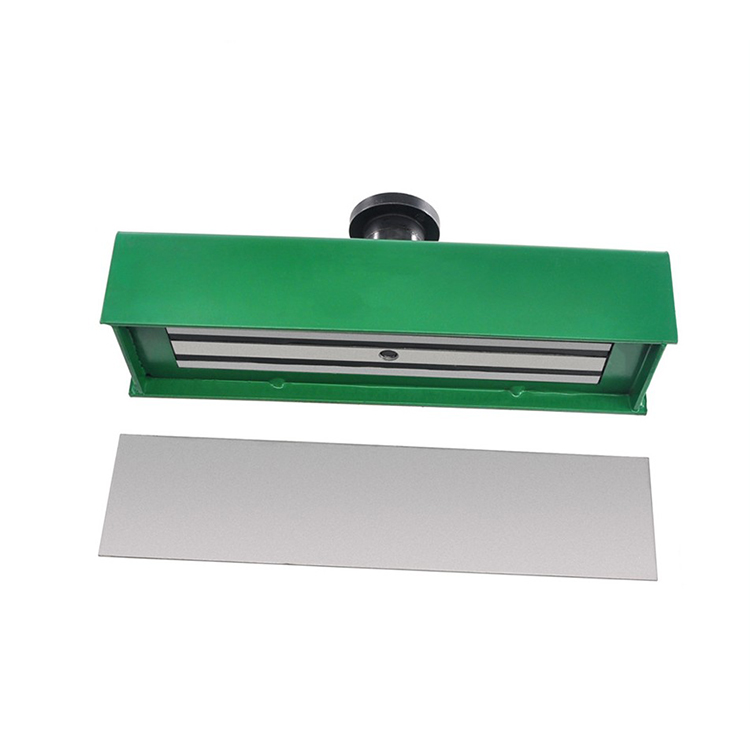

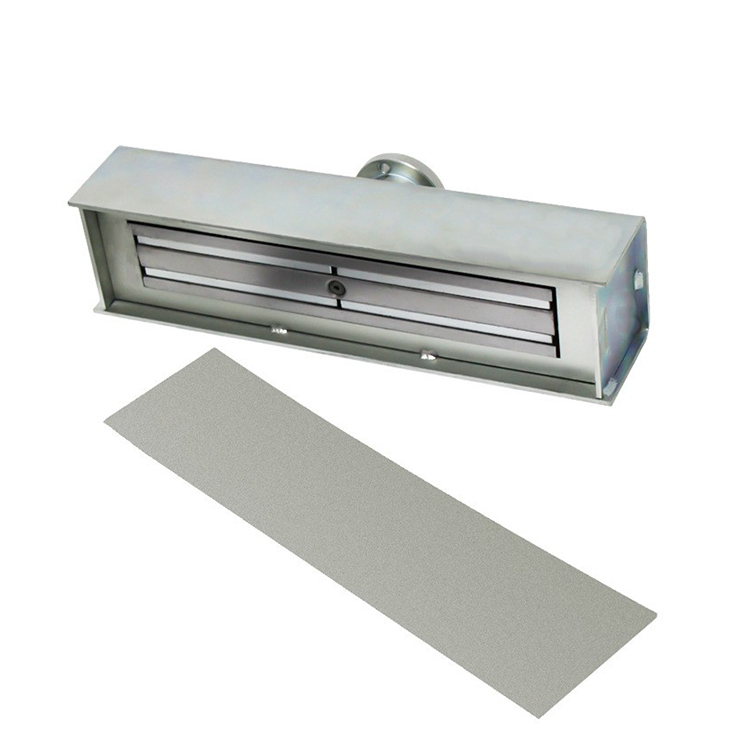

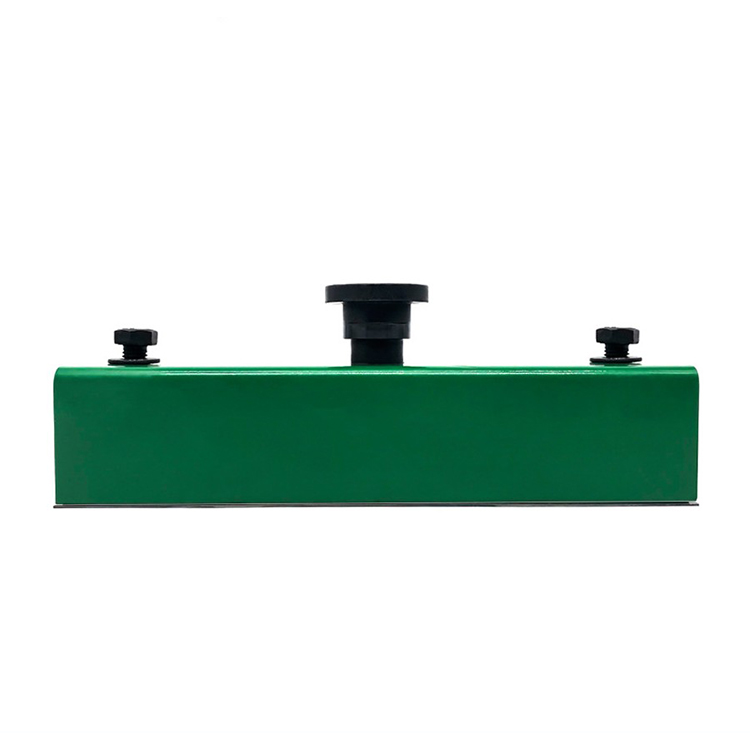

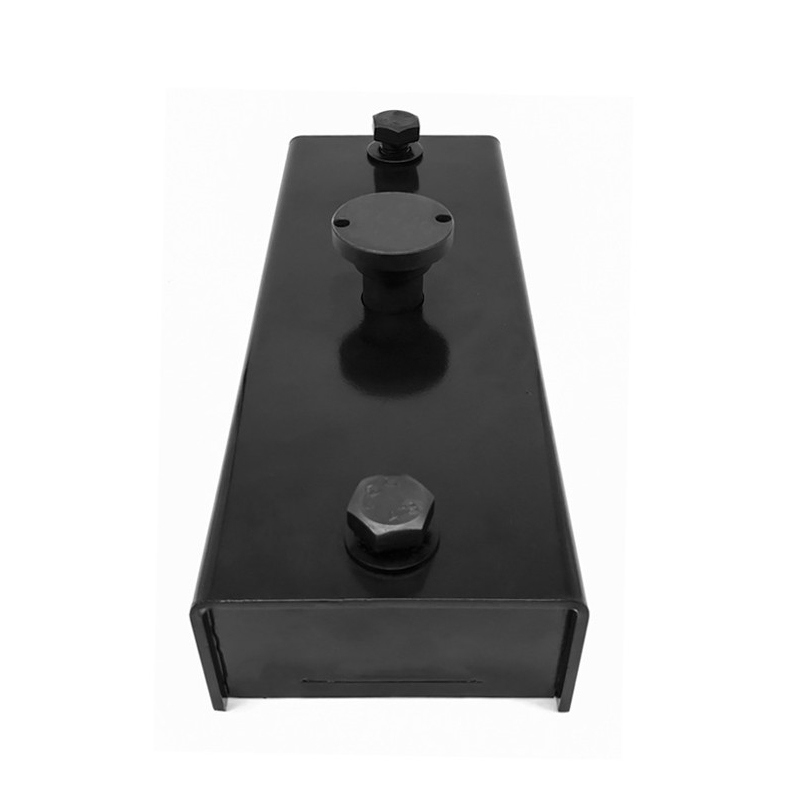

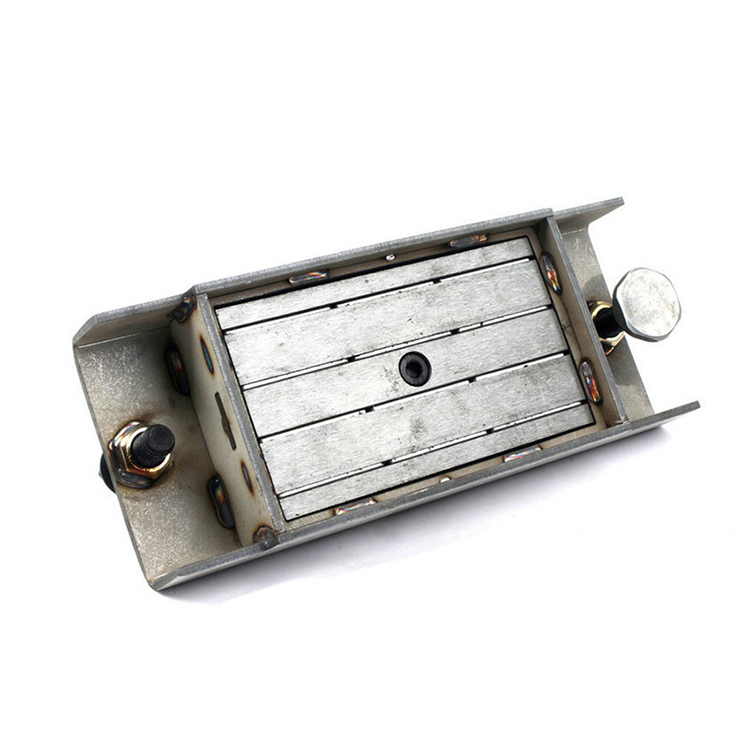

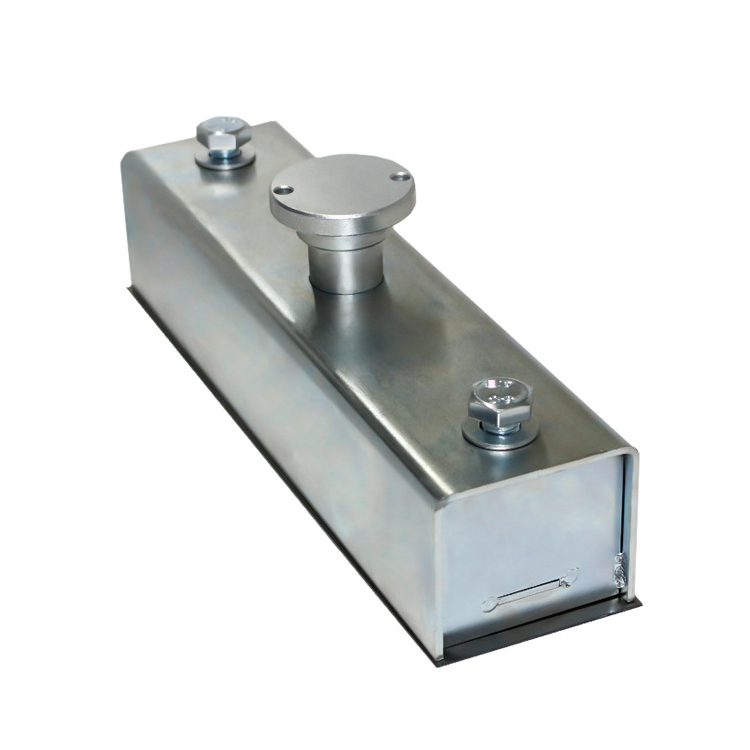

Stainless Steel Magnetic Box
The economical and practical carbon steel shell can effectively shield and protect the internal magnetic core. All bolts and nuts are made of 12.9 grade high-strength alloy material or 304 stainless steel material, which can easily connect external fixtures of different shapes and better fix the edge mold.
Features:
- With lightweight
- Simple and safe handling
- Simple servicing due to an open system
- Strong magnetic power, depending on Ground Surface (steel, thickness, temperature, roughness)
- Changing the formwork just by removing three screws
- Materials (Steel and Polyurethane) resistant against concrete
- Easy to clean
- The Springs pull the formwork down to the Table and prevent the penetration of concrete
- Spring elements help to unlock the magnets when demoulding
- Non-magnetic handling knop enables stacking up the profiles
Parameters
|
Model |
L(mm) |
L1(mm) |
W(mm) |
h(mm) |
M |
Breakaway(kg) |
|
DXCH-900 |
280 |
230 |
60 |
12 |
70 |
900 |
|
DXCH -1600 |
270 |
218 |
60 |
16 |
120 |
1600 |
|
DXCH -2100 |
320 |
270 |
60 |
16 |
120 |
2100 |
|
DXCH -2500 |
320 |
270 |
60 |
16 |
120 |
2500 |
|
DXCH -3100 |
320 |
270 |
60 |
16 |
160 |
3100 |
