The AlNiCo magnets feature excellent temperature stability, high residual induction, and relatively high energies that characterize Alnico materials, composed primarily of alloys of Aluminum, Nickel, and Cobalt. They are manufactured through either a casting or sintering process. Cast magnets may be manufactured in complex shapes.

AlNiCo Magnets

Sintered AlNiCo Magnets

Character Of Sintered AlNiCo Magnets

Compact crystal, high intensity, good chemistry Stability, strong anti-corrosion.
Even elements, excellent and stable magnetic performance;
Excellent temperature stability (temp. coefficient of Br is the smallest among all of the other permanent magnets.)
Highest usage temperature reach 500℃
uitable for small volume and complex shape and magnet assemble for sintered Alnico.

Application Of Sintered AlNiCo Magnets

Inner magnetic voltmeter/ammeter, electronic type power energy measuring instrument, avometer, flow meter;
wide range of magnetic sensor, polarized relay, temperature and pressure controller;
Buzzer of Mobile phone, hearing aids, mini speaker;
Lighter of automobile, odometer of automobile and motorcycle, permanent motor, adsorptive appliance;
idely applied in high stability fields as aviation and military technology.

Magnetic properties and physical characteristics
of sintered AINiCo permanent magnets

Grade	(BH)max KJ/m3	Br mT	Hcb kA/m	Hcj kA/m	d g/cm3	α(Br) %/K	Tc ℃	Remarks
ALNiCo4/1	3.2-4.8	870-890	9-11	10-12	6.8	-0.02	750	isotropy
ALNiCo8/5	8.5-9.5	530-620	45-50	47-52	6.8	-0.02	750
ALNiCo10/5	9.5-11	630-700	48-56	50-58	6.8	-0.02	780
ALNiCo12/5	11-13	700-750	50-56	53-58	7.0	-0.02	800
ALNiCo14/5	13-15	730-800	47-50	50-53	7.1	-0.02	790
ALNiCo14/6	14-16	620-810	56-64	58-66	7.1	-0.02	790
ALNiCo14/8	14-16	550-610	75-88	80-92	7.1	-0.01	850
ALNiCo18/10	16-19	570-620	92-100	99-107	7.2	-0.01	860
ALNiCo35/5	35-39	1100-1200	48-52	50-54	7.20	-0.02	850	Anisotropy
ALNiCo29/6	29-33	970-1090	58-64	60-66	7.20	-0.02	860
ALNiCo32/10	33-38	770-870	90-104	94-109	7.20	-0.01	860
ALNiCo33/11	33-38	700-800	107-115	111-119	7.20	-0.01	860
ALNiCo39/12	39-43	830-900	115-123	119-127	7.25	-0.01	860
ALNiCo44/12	44-48	900-950	119-127	124-132	7.25	-0.01	860
ALNiCo37/15	37-41	700-800	143-151	150-158	7.10	-0.1	870

Cast AlNiCo Magnets

Cast AINiCo magnet is an alloy of aluminum-nickel-cobalt, it features excellent temperature stability and corrosion resistance, widely used in motor, sensor, separator, Loudspeaker and holding system, etc.

Magnetic Properties of Cast AlNiCo Magnets

Grade	Remanence Br		Coercivity Force Hcb		Max. Energy Product (BH)max		max. continuous temperature	US standard	IEC standard
	mT	kGs	kA/m	Oe	kJ/m3	MGOe	℃
LN10	650	6500	42	530	10	1.2	810	Alnico 3	Alnico 9/3
LNG11	720	7200	37	480	11.2	1.4	810	Alnico 1	Alnico 8/4
LNG13	700	7000	50	620	13	1.6	810	Alnico 2	Alnico 12/6
LNGT18	580	5800	90	1130	18	2.26	860	[I.Alnico 8]	Alnico 17/9
LNG16	800	8000	53	660	16	2	850	[Alnico 4]	/
LNG34	1180	11800	44	550	35	4.3	860	[Alnico 5C]	/
LNG37	1180	11800	48	600	37	4.65	860	[Alnico 5C]	Alnico 37/5
LNG40	1220	12200	48	600	40	5	860	Alnico 5	/
LNG44	1220	12200	52	650	44	5.5	860	Alnico 5	Alnico 44/5
LNG52	1250	12500	55	690	52	6.5	860	Alnico 5 DG	Alnico 52/6
LNG60	1300	13000	56	700	60	7.5	860	Alnico 5~7	/
LNGT28	1050	10500	56	700	28	3.5	860	Alnico 6	Alnico 26/6
LNGT32	800	8000	104	1300	34	4.25	860	Alnico 8	Alnico 38/11
LNGT38	820	8200	110	1380	38	4.75	860	Alnico 8	Alnico 38/11
LNGT44	880	8800	120	1500	44	5.5	860	Alnico 8	/
LNGT60	900	9000	110	1380	60	7.5	860	Alnico 8	Alnico 60/11
LNGT72	1050	10500	112	1410	72	9	860	Alnico 9	/
LNGT36J	700	7000	140	1750	36	4.5	860	Alnico 8 HC	Alnico 36/15

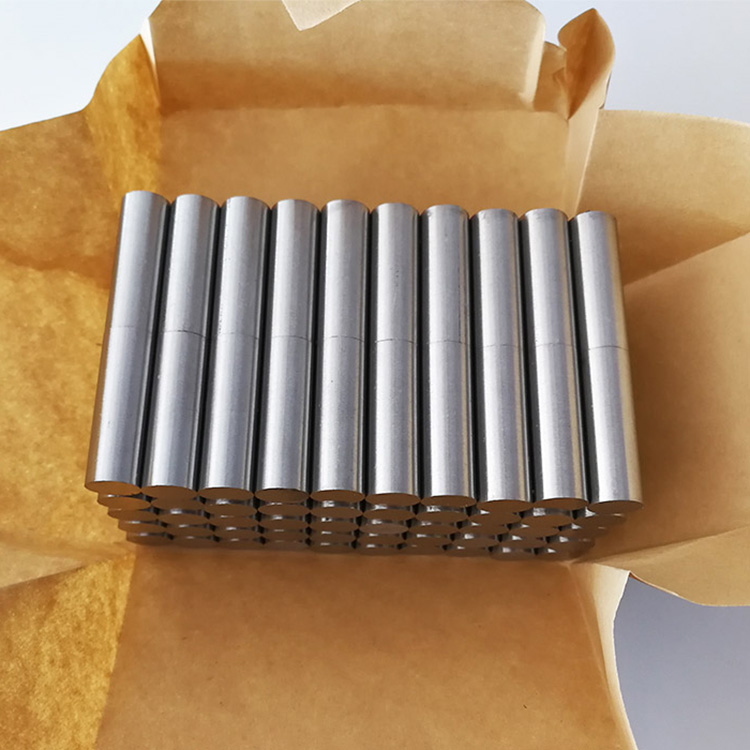

Package of AlNiCo Magnets
