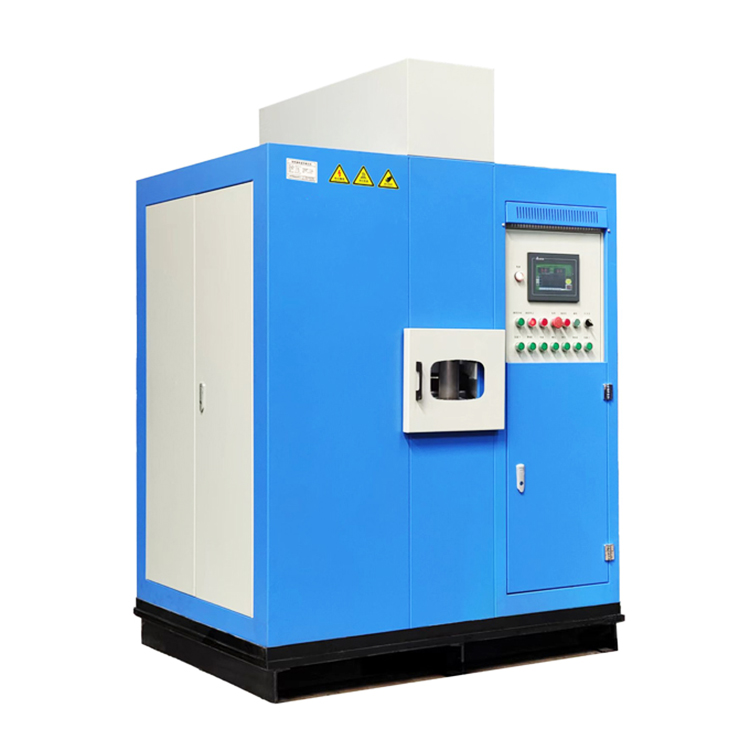

Cold Isostatic Press

CIP is particularly effective for shaping and consolidating powdered materials, creating intricate shapes, and achieving high green density . It is used with various materials such as powdered metallurgy, cemented carbides, refractory materials, graphite, ceramics, plastics, and more .

In summary, the cold isostatic pressing machine is a valuable tool in the manufacturing of advanced materials, providing a means to produce high-quality parts that can undergo further processing such as sintering or hot isostatic pressing.

Main technical of the DXLDJ300/400-400 model:

Configuration and features:

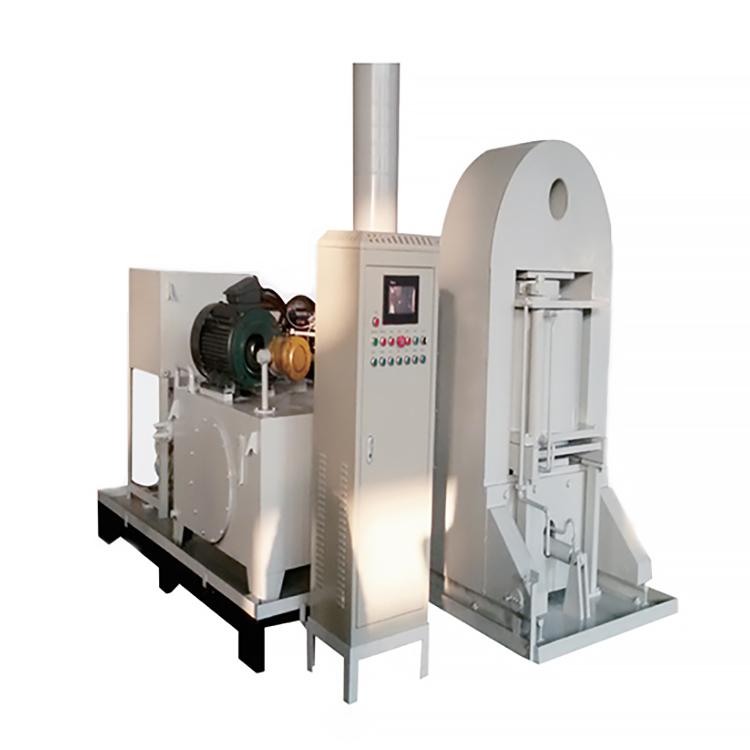

1. The whole machine consists of four parts: main machine, main control hydraulic station, rehydration station, and electric control cabinet.

2. The working cylinder diameter is 300mm; the effective depth is 400mm; the maximum working pressure is 400MPa.

3. The frame is a fixed frame structure.

4. The main components of the high-pressure chamber, booster chamber, and frame all adopt a strictly calculated pre-strained tension steel wire winding structure, which has the advantages of light weight, high fatigue resistance, long service life, etc., safe and reliable.

5. The press adopts a dual-medium isolation device to greatly reduce the failure rate and use cost.

6. Fully automatic PLC control, equipped with a human-machine interface, truly reflects the actual pressure of the working cylinder. Simple operation and convenient maintenance.

7. Reasonable and optimized hydraulic design and production. It can realize multi-stage boosting, pressure maintenance and multi-stage pressure relief, pressure maintenance and other functions, and the boosting and pressure relief speeds are adjustable.

8. Servo motor control is adopted, and the system is energy-saving and environmentally friendly.

Main technical parameters:

1. Maximum static pressure of high pressure chamber----------------400 MPa

2. Volume of high pressure chamber--------------------φ300X400mm3

3. Maximum working pressure of booster cylinder------------30MPa

4. Pressurization time 0-400MPa--------------≤150s

5. Pressure holding time----------------------0-9999s continuously adjustable

6. Unloading speed----------------------continuously adjustable

7. Pressurization speed----------------------continuously adjustable

8. Pressurization and pressure relief---------------------can be divided into multiple sections

9. Oil pump flow----------------------40MCY-14B

10. Motor rated power------------------30KW servo motor +3KW

11. Working cycle beat------------------about 5Min (pressure holding time adjustable)

12. Machine weight---------------------about 15 tons

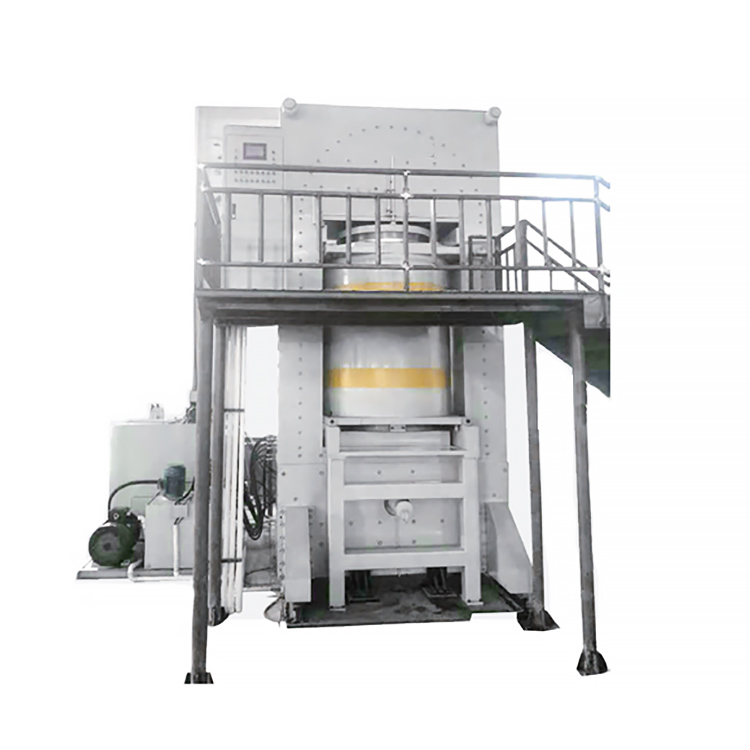

Main models and parameters of cold isostatic press (can be customized):
